Rental Led Display Screen Indoor Outdoor 500x500mm 500x1000mm
Rental LED Display Overview?
LED rental displays are specially designed display devices for led video wall rental scenarios, featuring rapid disassembly and assembly, convenient transportation, moveable and flexible splicing. They mainly serve the display needs of various temporary events, stage, performances, exhibitions, and other scenarios. Applications cover stage performances, commercial exhibition displays, conferences and celebrations, sports event live broadcasts, etc. The commonly selected resolutions include P2.604, P2.976, P3.91, P4.81, with customization available for other resolutions. Through flexible rental models and efficient equipment performance, rental led screen provide convenient visual solutions for various temporary events, serving as essential tools to enhance on-site effects in event planning.
1. Rapid Disassembly & Transportation
Featuring modular design, each cabinet is ultra-lightweight and integrated with quick-locking mechanisms, enabling single-person operation for installation and dismantling. During transit, cabinets can be stacked efficiently to minimize logistics space.
2. Flexible Splicing Capability

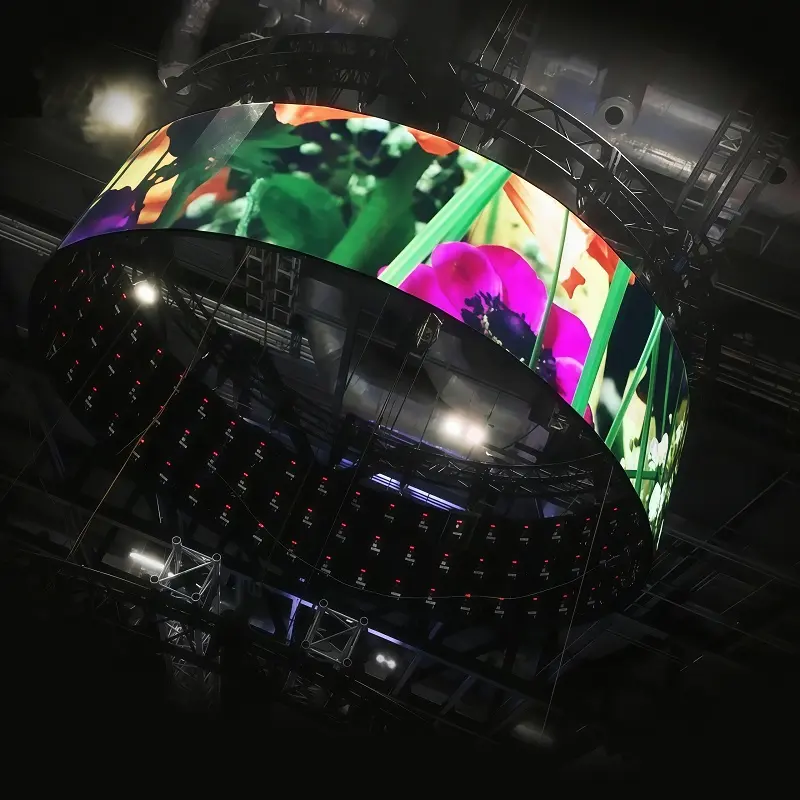

Supports seamless splicing in any dimension or shape (arc, irregular, etc.). The control system ensures real-time calibration, maintaining splicing gaps within 0.2mm—ideal for stage design requiring creative configurations.
3. High Reliability & Versatility
With an IP65 protection rating (outdoor-grade), the display is suitable for both indoor and outdoor applications, delivering consistent performance across diverse event environments.

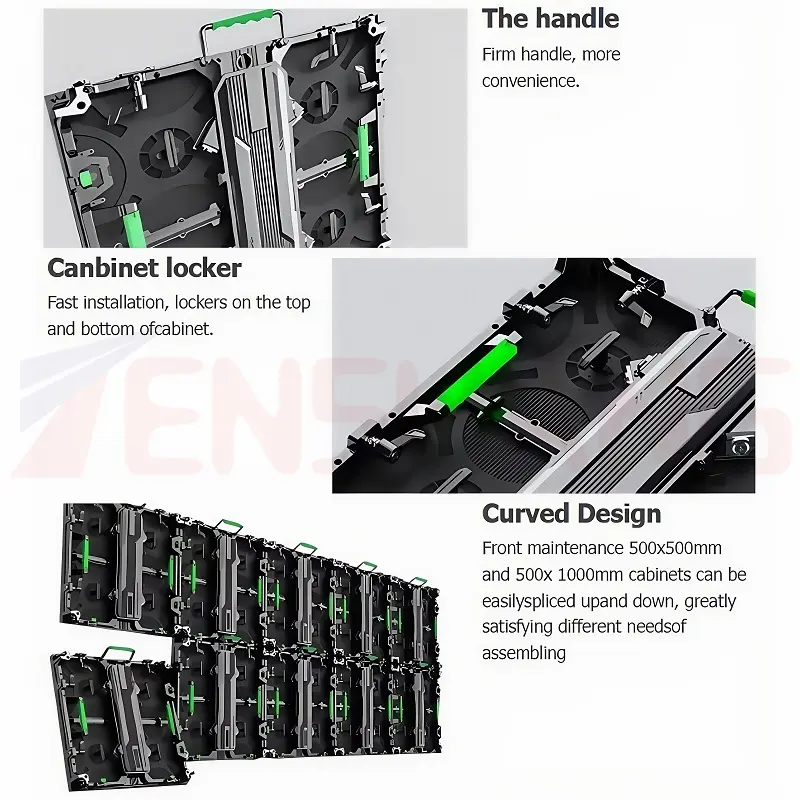

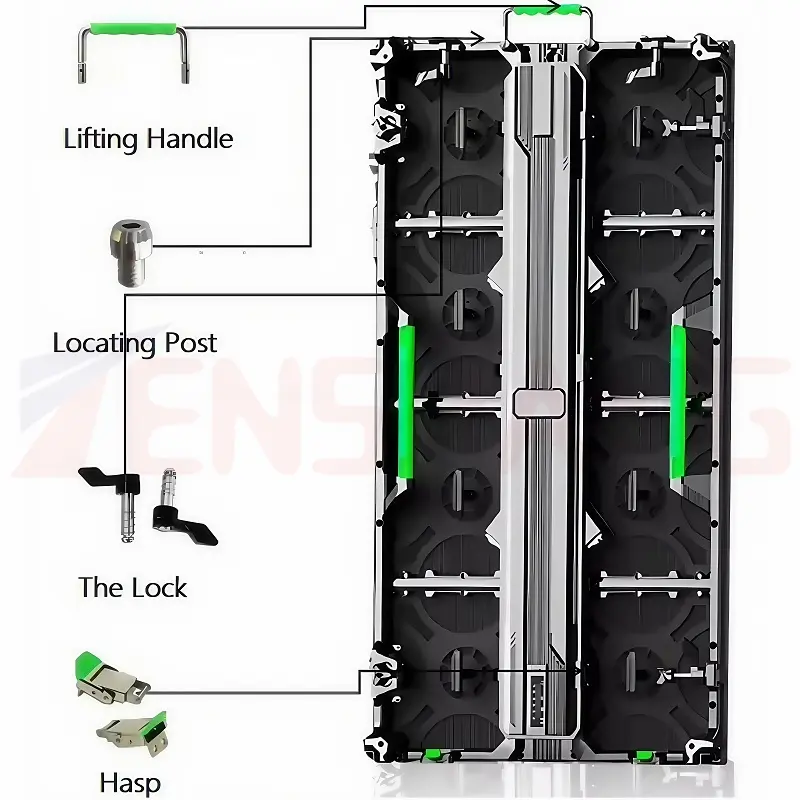

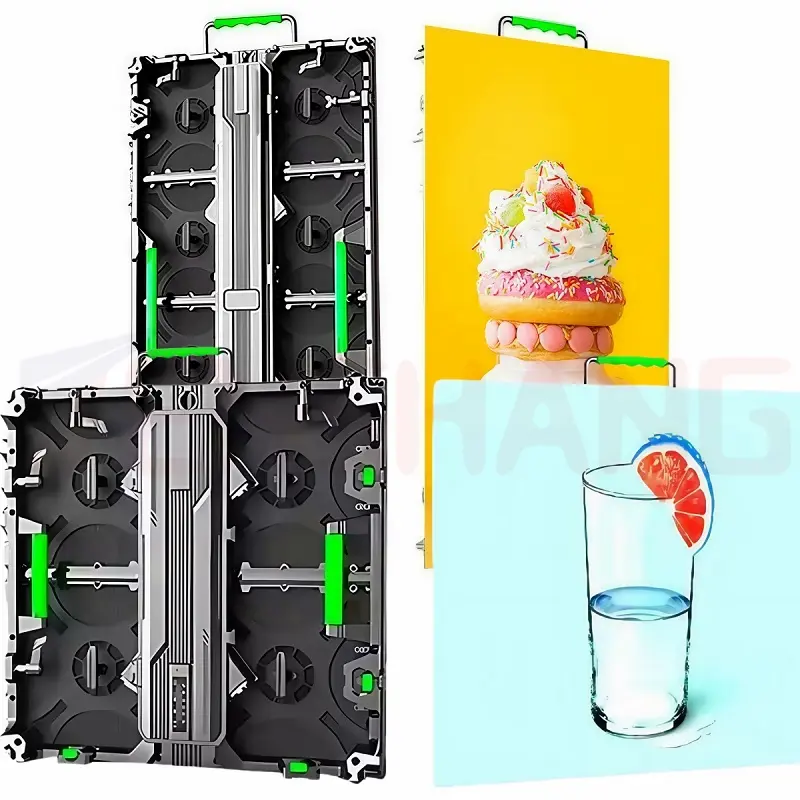

·With a built-in handle for easy carrying and operation.
·Arc-shaped installation design, with bending arcs adjustable in five gears: +5°, +2.5°, 0°, -2.5°, and -5°.
·Quick-locking buckle design supports rapid splicing of components.
·Positioning lock structure enables precise splicing and quick installation.
·Rear cover buckle design ensures the stability of the internal structure.

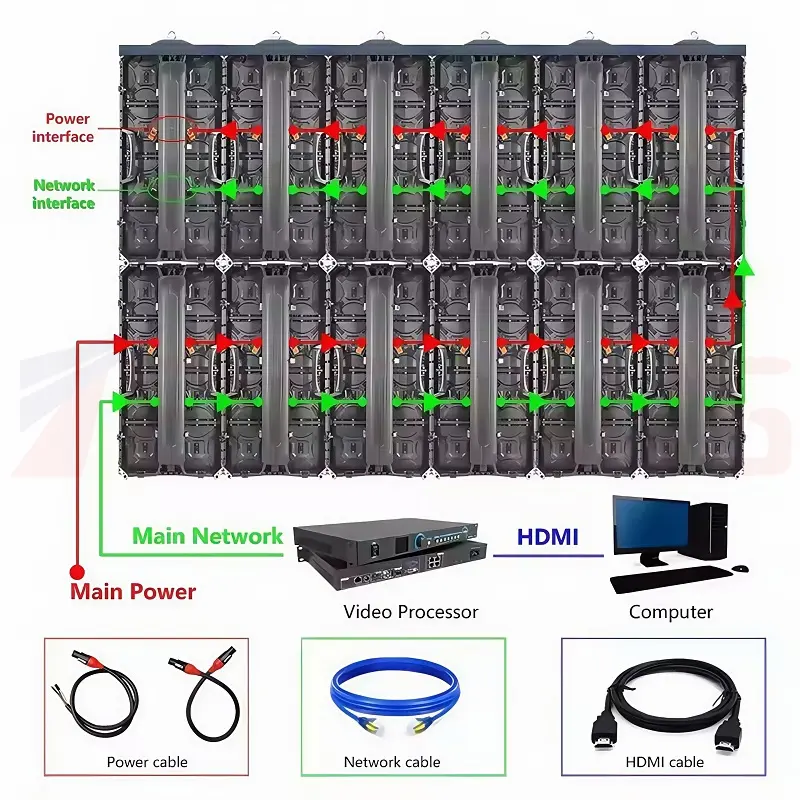

Use quick-lock structures for rapid splicing，connect via HDMI/data cables, calibrate grayscale,by these steps, LED rental display screens can achieve precise splicing while meeting requirements for structural stability and scene adaptability.

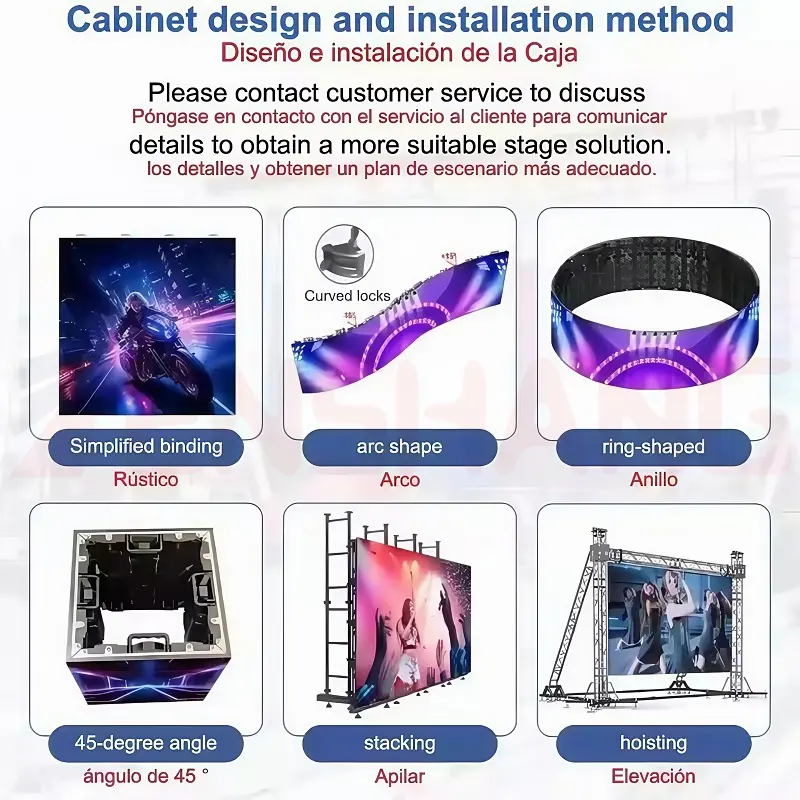

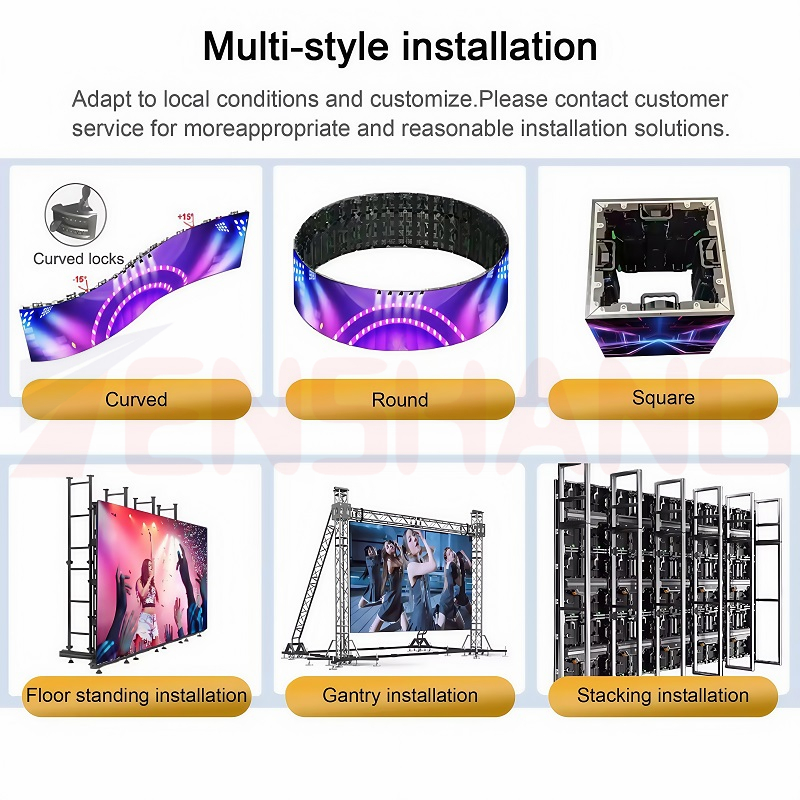

The installation method of indoor outdoor rental led display screen requires rapid construction, structural stability, and scene adaptability. Common installation methods include Suspension Mounting, stacking installation, special-shaped splicing installation, etc. Installation shapes cover curved, round, square, floor-standing, gantry, stacking, etc.

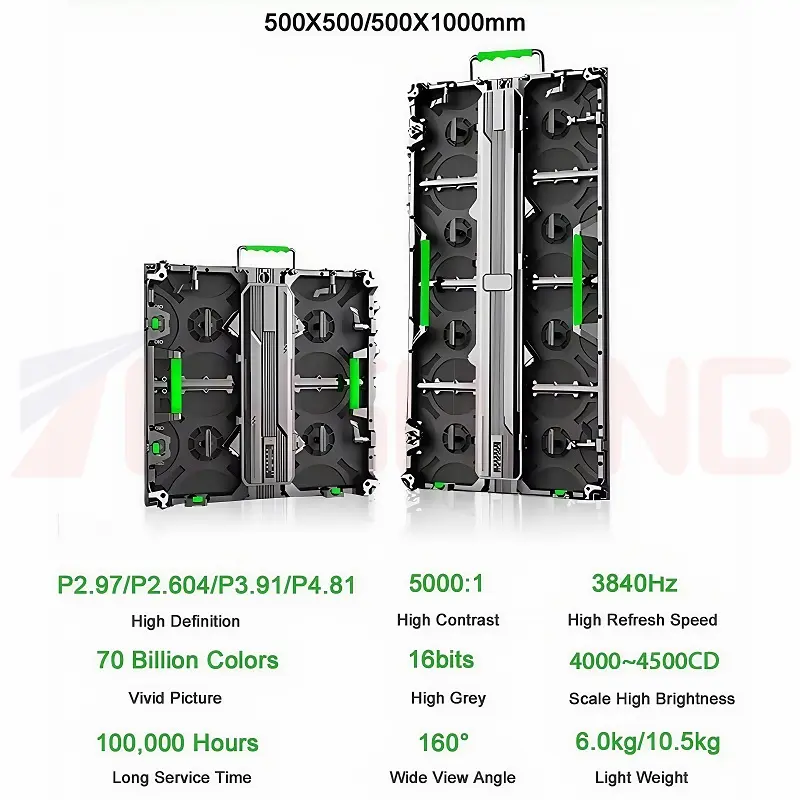

Parameter
| TS0005-YZ500U | P2.604 | P2.976 | P3.91 | P4.81 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Density | 147,928 dots/㎡ | 112,910 dots/㎡ | 65,536dots/㎡ | 43,222dots/㎡ |
| Panel Size | 500x500x55mm 500x1000x55mm | 500x500x55mm 500x1000x55mm | 500x500x55mm 500x1000x55mm | 500x500x55mm 500x1000x55mm |
| Panel Resolution | 192x192dots 192x384dots | 192x192dots 192x384dots | 192x192dots 192x384dots | 192x192dots 192x384dots |
| Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Refresh Rate | 3840Hz/7680Hz | 3840Hz/7680Hz | 3840Hz/7680Hz | 3840Hz/7680Hz |
| Brightness | 900 nits / 4500 nits | 900 nits / 4500 nits | 900 nits / 5000nits | 900 nits / 5000nits |
| Input Voltage | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz |
| Max Power Consumption | 800W | 800W | 800W | 800W |
| Average Power Consumption | 300W | 300W | 300W | 300W |
| Application | Indoor / Outdoor | Indoor / Outdoor | Indoor / Outdoor | Indoor / Outdoor |
| Flexible Arc | +5 +2.5 0-2.5 -5 ° | +5 +2.5 0-2.5 -5 ° | +5 +2.5 0-2.5 -5 ° | +5 +2.5 0-2.5 -5 ° |
| Weight | 6KG / 11KG | 6KG / 11KG | 6KG / 11KG | 6KG / 11KG |
| Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Certificates | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC |
| Optional Resolution | P1.953 / P2.5 / P2.604 / P2.976 / P3.91/ P4.81 | |||
Video of this digital signage rental led displays

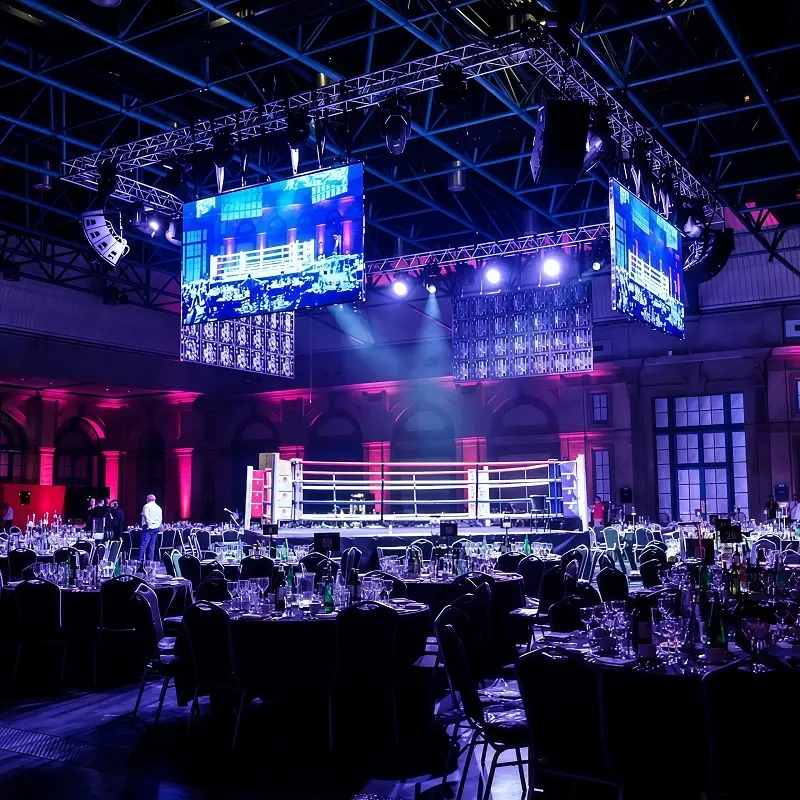

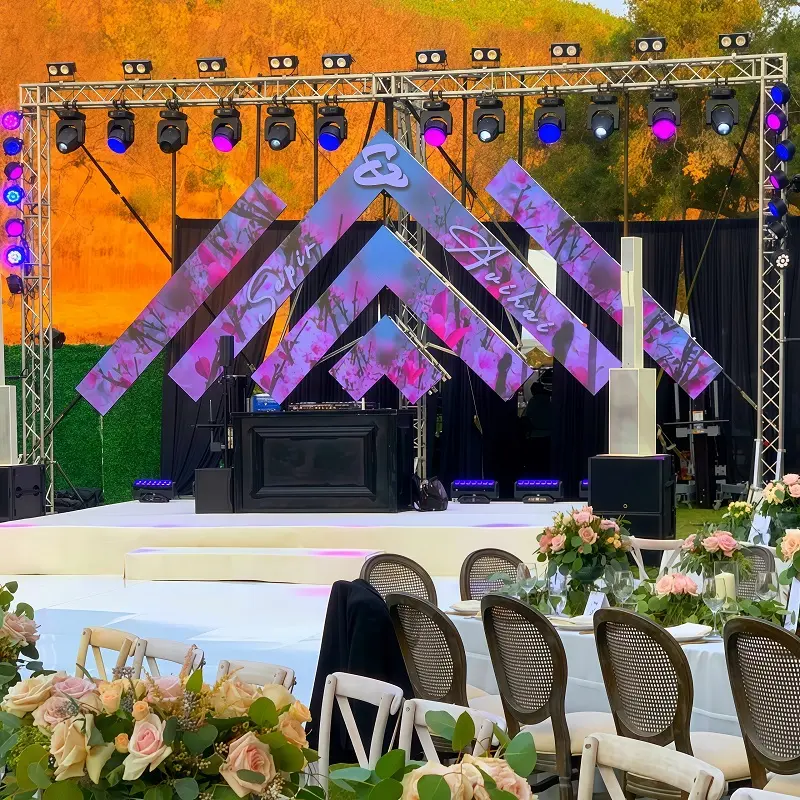

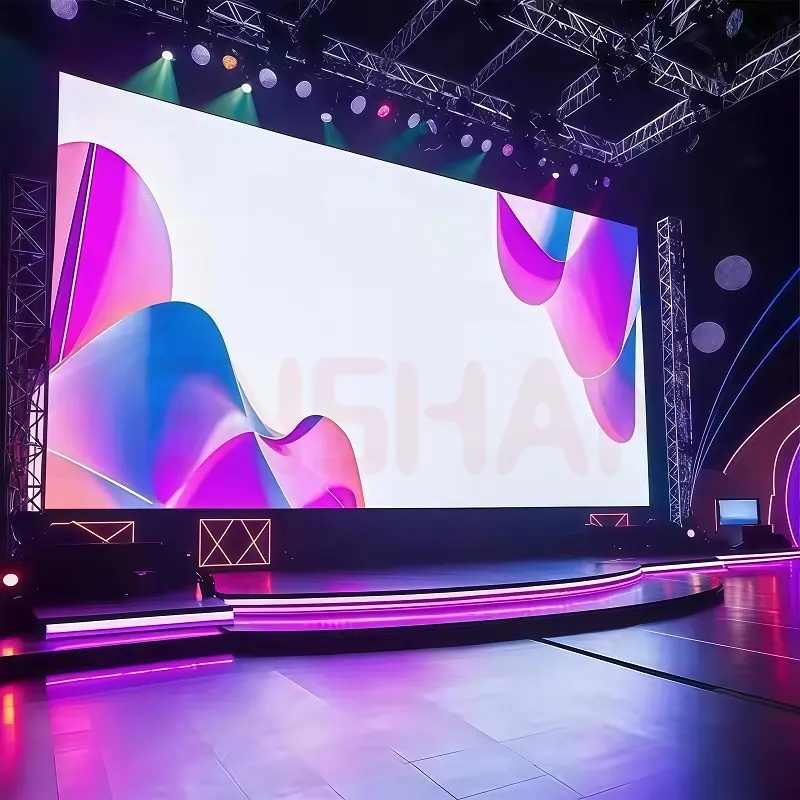

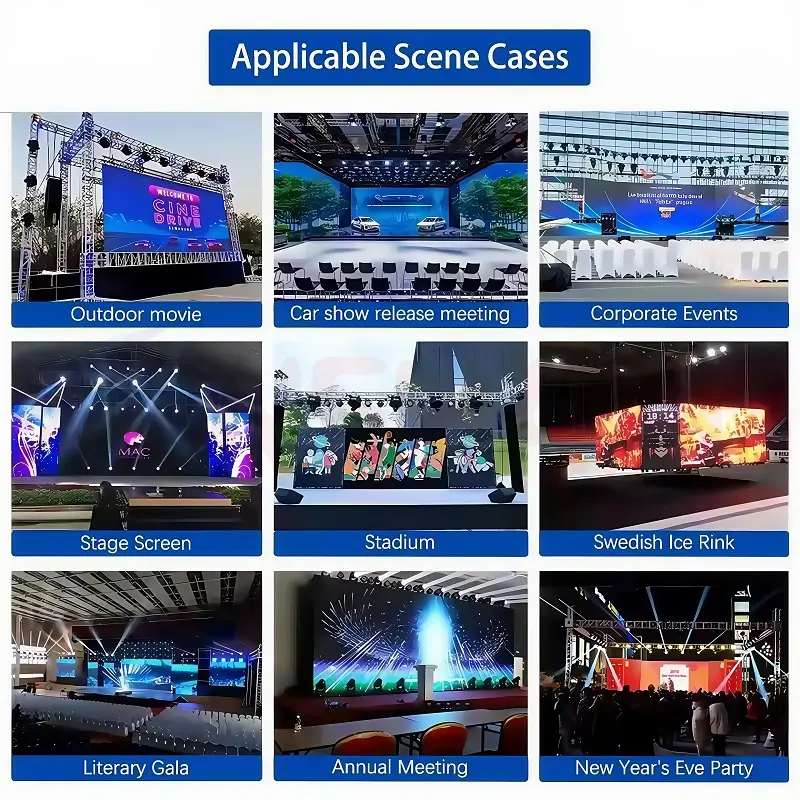

Application of this full color giant led video wall
FAQs
-
Q1. Are there any installation accessories for this tv show background rental led video?
Yes, all installation accessories include power plug, connecting piece, singal plug, necwork cable, led modules etc. -
Q2. What are the commonly used pixel spacing? How to choose?
-
Q3. How to reduce losses when frequently disassembling and assembly of led rental display?
-
Q4. Can I connect to the network cable for live broadcast of the event?
-
Q5. Can I customize it if there are special usage scenarios?
-
Q6. Which brand of video processors do you use?
