Giant Digital LED Billboard for Outdoor Advertising Video Display Ads

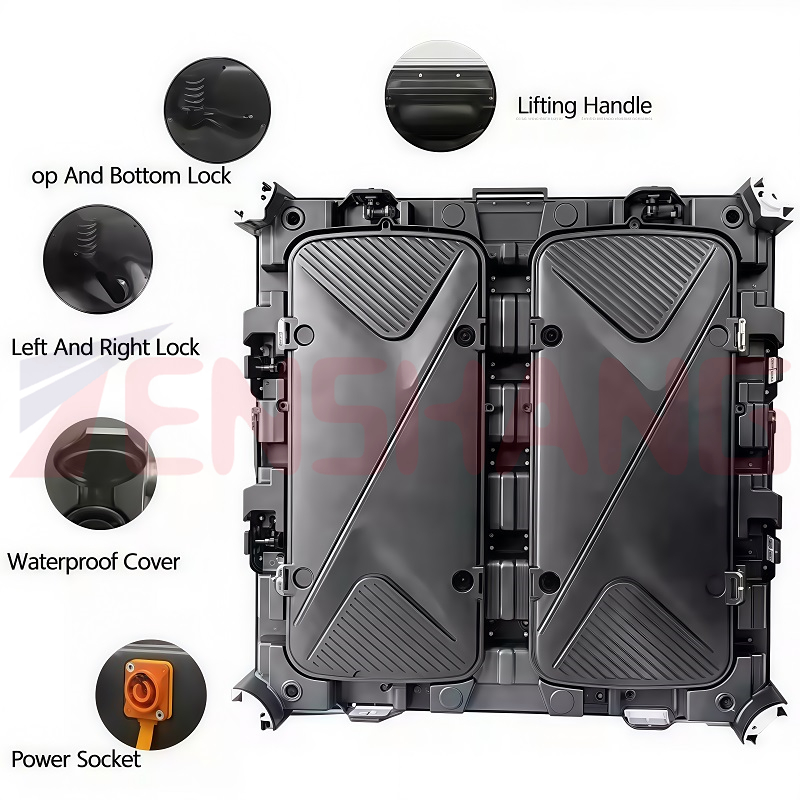

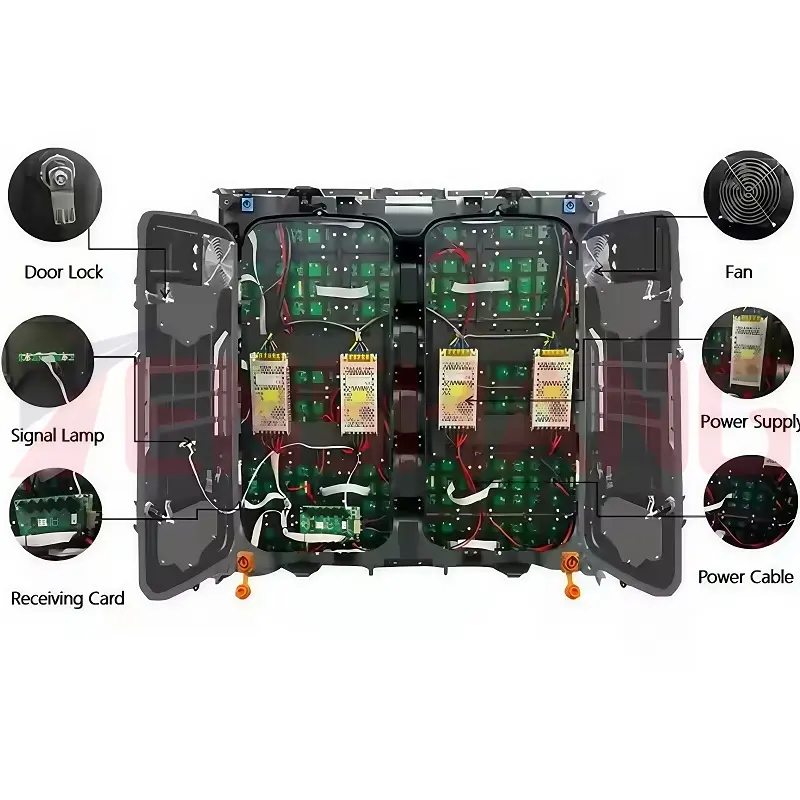

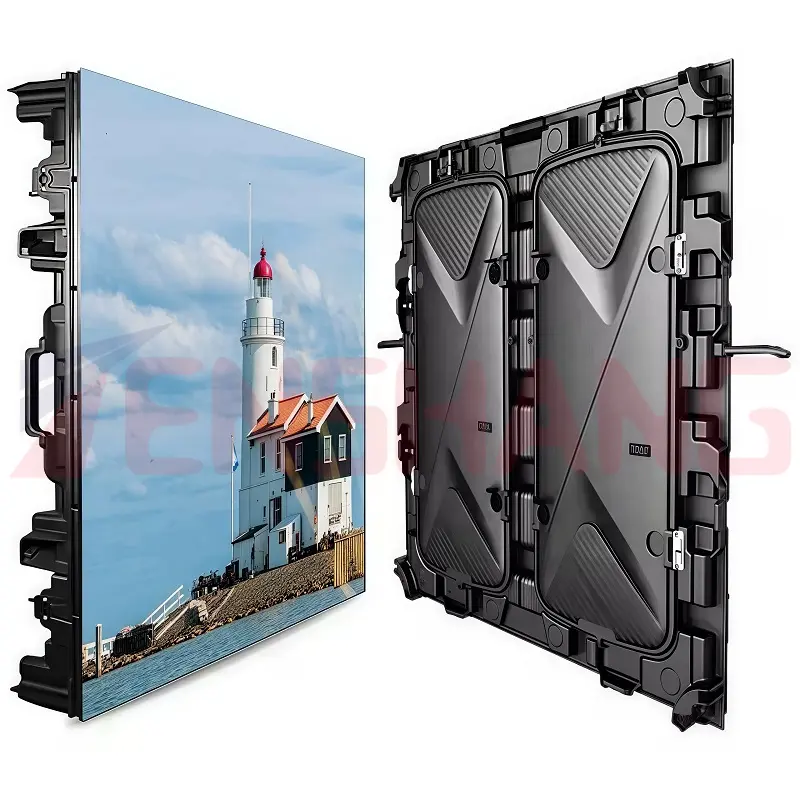

Analysis of product features of TENSHANG 960MAX series led billboard outdoor advertising

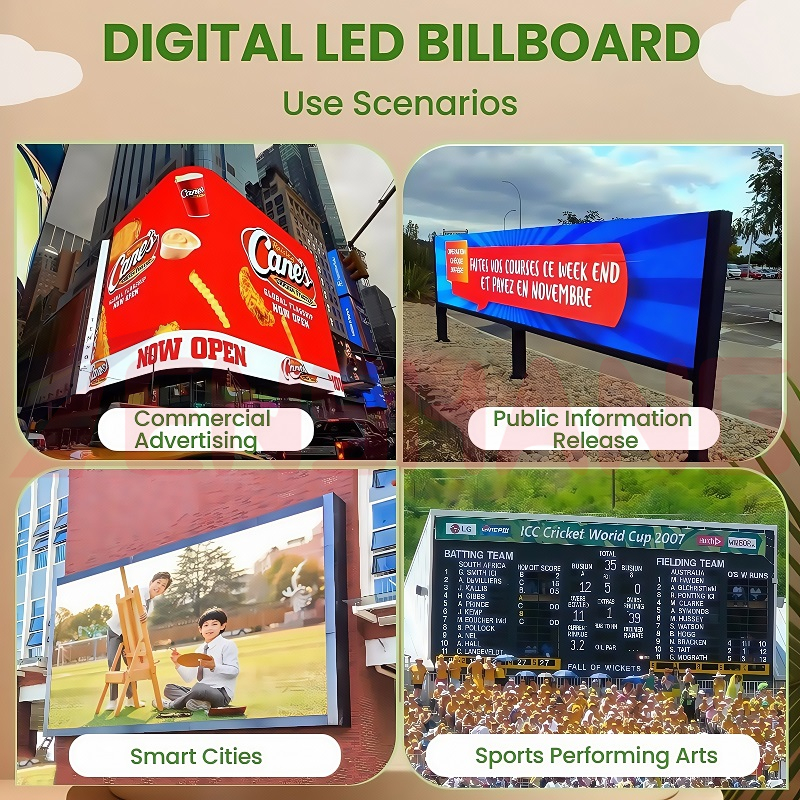

Outdoor billboard led display are mainly used in the following scenarios:
Commercial advertising: Large screens on the outer walls of shopping malls and commercial streets broadcast dynamic advertisements and promotional information to attract foot traffic;
Public information release: Transportation hubs (airports, stations) release timetables and notices; large square screens broadcast news and weather forecasts;
Sports and performing arts: Circular screens in stadiums and background screens at concerts display real-time event footage and special effects videos;
Smart cities: Combined with sensors and big data, they display public information such as traffic flow and environmental monitoring data.

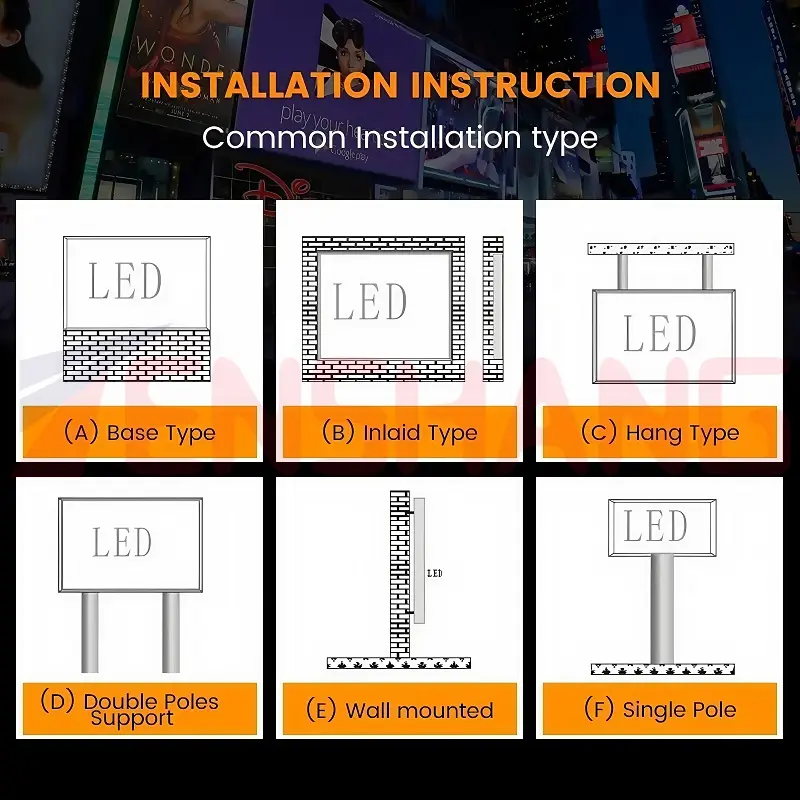

The installation method of billboards led display outdoors should be selected comprehensively based on the installation environment (such as walls, ground, roof, etc.), display size, load-bearing conditions, and usage requirements (such as maintenance convenience, wind resistance, and earthquake resistance). Common methods are as follows:
1. Wall-mounted installation
Applicable scenarios: Vertical surfaces such as building exteriors (e.g., shopping malls, office building walls) and column sides, suitable for small and medium-sized displays (usually with an area ≤ 50㎡).
2. Column-mounted installation

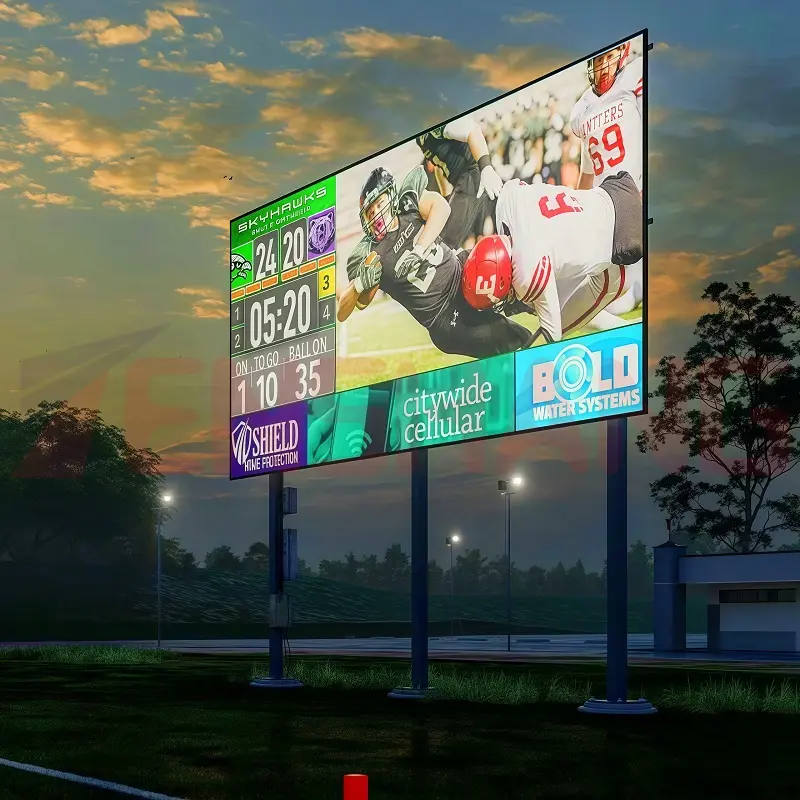

Applicable scenarios: Open spaces (e.g., squares, parking lots, highways), used when there is no wall to rely on, suitable for medium and large-sized displays (with an area of 50-200㎡).
3. Roof-mounted installation
Applicable scenarios: Tops of high-rise buildings, used for long-distance communication (e.g., urban landmark buildings), suitable for large-sized displays (with an area ≥ 100㎡).
4. Floor-mounted installation
Applicable scenarios: Indoor-outdoor transition areas (e.g., venue entrances, exhibition sites) or open ground, suitable for small and medium-sized displays (with an area ≤ 30㎡).
5. Embedded installation
Applicable scenarios: Reserved grooves or specific shaped areas on building facades, pursuing an integrated design with the building, suitable for customized small and medium-sized displays.
6. Hoisting installation
Applicable scenarios: Under the top or ceiling of large venues (e.g., gymnasiums, convention and exhibition centers), or specific suspended areas, suitable for medium-sized displays (with an area of 20-80㎡).
LED video wall pantalla rental parameter
| TS0004-960MAX | P2.5 | P4 | P5 | P8 | P10 |
| Pixel Pitch | 2.5mm | 4mm | 5mm | 8mm | 10mm |
| Lamp Beads | SMD1415 | SMD1912 | SMD1912 | SMD2525 | SMD3535 |
| Density (Pixels/㎡) | 160,000 | 62,500 | 40,000 | 15,625 | 10,000 |
| Module Size (mm) | 320*160 | 320*160 / 320*320mm | |||

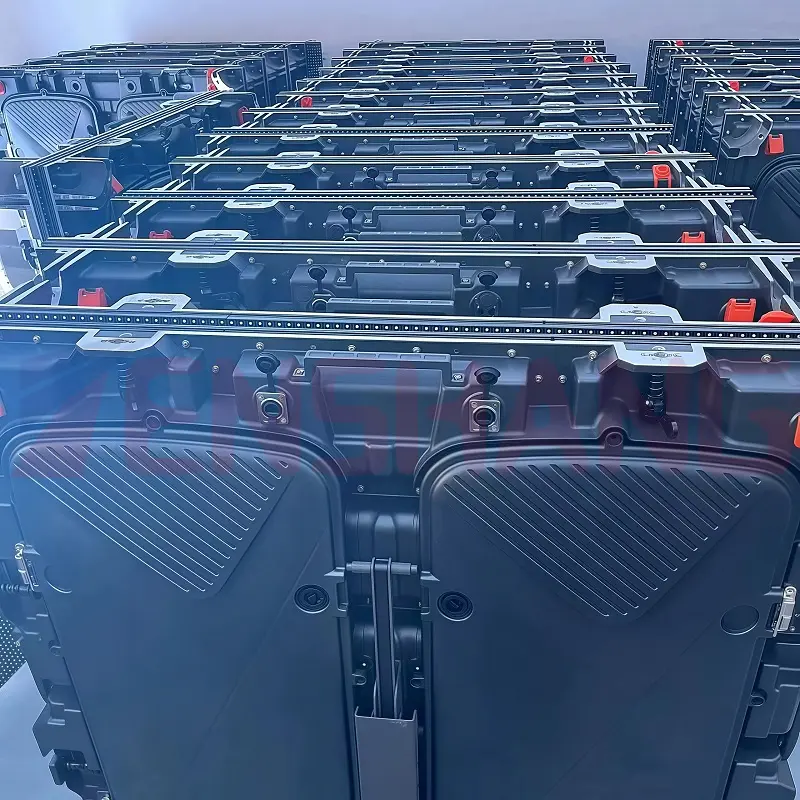

| Cabinet Size (mm) | 960*960*95 | 960*960*95 | 960*960*95 | 960*960*95 | 960*960*95 |
| Scanning | 1/16 Scan | 1/8 Scan | 1/8 Scan | 1/5 Scan | 1/4 Scan |
| Brightness | 4500 nits | 5000 nits | 5000 nits | 6000 nits / 7500nits | 6500 nits / 8000nits |
| Viewing Angle | H 140°, V140° | H 140°, V140° | H 140°, V140° | H 140°, V140° | H 140°, V140° |
| Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Refresh Rate | 3840Hz/7680Hz | 3840Hz/7680Hz | 3840Hz/7680Hz | 3840Hz/7680Hz | 3840Hz/7680Hz |
| Input Voltage | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Application | Front IP65, Rear IP54 | Front IP65, Rear IP54 | Front IP65, Rear IP54 | Front IP65, Rear IP54 | Front IP65, Rear IP54 |
| Cabinet Weight (KG) | 26 | 26 | 26 | 26 | 26 |
| Maintenance Way | Rear Access | Rear Access | Rear Access | Rear Access | Rear Access |
| Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Certificates | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC |
Video of 960MAX series billboard outdoor led

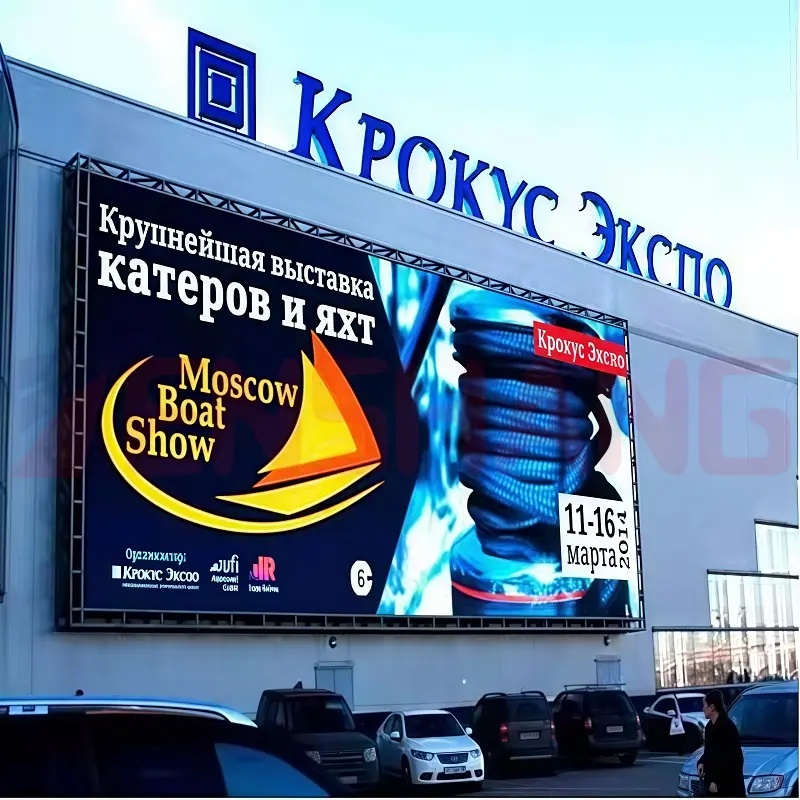

Project Cases
FAQs
-
Q1. What does the "point spacing" (such as P2.5, P10) mean for led outdoor tv billboard? What affects?
-
Q2. Can led video billboard screens work normally in rainy, high temperatures and cold weather?
-
Q3. Does led display billboard consume a lot of power? How to save energy?
-
Q4. Do billboard led advertising screen require regular maintenance? What are you mainly doing?
-
Q5. What usually includes after-sales warranty?
-
Q6. Can the led billboard outdoor see the picture clearly in direct sunlight? Will it reflect?
-
Q7. Can the outdoor screen run 24 hours a day? Will it affect lifespan?
-
Q8. Can the outdoordigital led billboard be connected to WiFi or mobile phone control? Is the operation complicated?
able. Modern outdoor screen supports multiple intelligent control methods: Wired/wireless connection: connect to the network through WiFi, 4G modules, and remotely push content from a mobile app or computer; Simple operation: Similar to "screen projection", it supports direct upload of pictures, videos, and text, and some models support voice control (such as "play ad A").
