Flexible Flim Transparent Led Display Screen Pantalla Stick on Glass

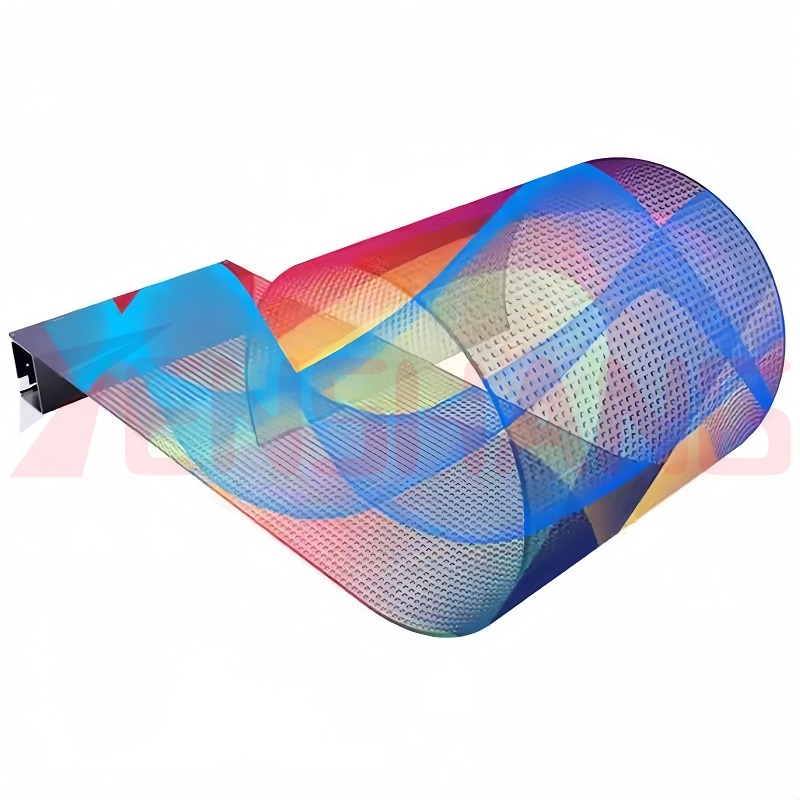

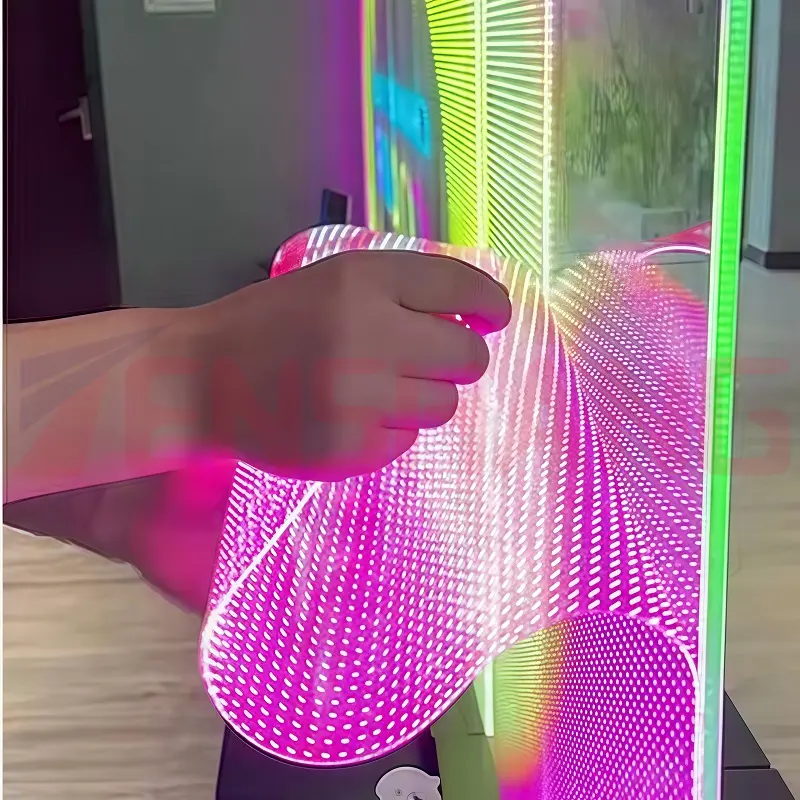

What is an flexible display transparent Led screen?
TENSHANG's LED transparent flexible display represents an innovative display technology that integrates the properties of transparent screens and flexible screens. Its core features include high transparency (80%-95%), bendability and foldability, high brightness, high resolution, energy efficiency, long lifespan, lightweight design, thin profile, portability, and strong customizability. It boasts a wide range of application scenarios, spanning commercial displays (such as shop windows and billboards), architectural decorations (including glass curtain walls and indoor partitions), entertainment venues (like stage backdrops and theme parks), transportation facilities (e.g., station glass and in-car environments), and smart homes (such as windows and wardrobe doors). Through the selection of flexible, transparent substrates like PET and PI, the installation of LED lamp beads via technologies such as SMT, the design of circuits using transparent conductive materials including ITO and metal grids, and the enhancement of stability through packaging processes, it ultimately delivers a display effect that combines functionality with adaptability.
The key differences between LED transparent screens and conventional LED screens lie primarily in their design philosophies, performance parameters, and application scenarios. Conventional LED screens are centered on "high-quality image display" and excel in scenarios demanding high picture precision. In contrast, transparent screens focus on integrating "light transmittance with display functionality," making them ideal for situations where a balance between display performance and spatial transparency is required—such as glass surfaces and light-exposed areas.
Commercial display: shopping mall windows and brand counters (both display products and play dynamic advertisements);
Building decoration: glass curtain walls and office building partitions (does not affect lighting and enhance the sense of technology);
Transportation hub: station glass, subway shielded doors (display information without blocking the line of view);
Stage performance: transparent stage background (to create a three-dimensional effect with lighting).
Parameter of transparent led film screen
| TS0008-GQ | P6.25 | P10 | P15 | P20 | P30 |
| Pixel Pitch | 6.25mm | 10mm | 15mm | 20mm | 30mm |
| Size | 960*1440*7mm / 1200*1700*7mm / customized size | ||||
| Material | Polyester fiber (customized optional) | ||||
| Humidity | Relative humidity ≤60% | ||||
| Brightness | 2500cd/㎡ | 2000cd/㎡ | 1800cd/㎡ | 1000cd/㎡ | 500cd/㎡ |
| Color | RGB Full Color | ||||
| Light Transmittance | 0.8 | ||||
| Grayscale | 16bits | ||||
| Output Voltage | DC 5V (DC 12V optional) | ||||
| Video Grids | MP4 / RMVB / MKV / AVI | ||||
| Power Supply Mode | Battery (power supply/movable power supply optional) | ||||
| Control System | 433 Control / APP / USB / TF / PC / WIFI+4G Onbon | ||||
| Working Temperature | 0~50°C | ||||
| Storage Temperature | 5°C~30°C | ||||
| Use Environment | Indoor (outdoor optional) | ||||
| Packing | 38.5*28*9cm 1.9Kg / 46*35*11cm 4Kg | ||||
| Featured Function | Seamless splicing cascade | ||||
Video of pantalla led flexible transparente screen

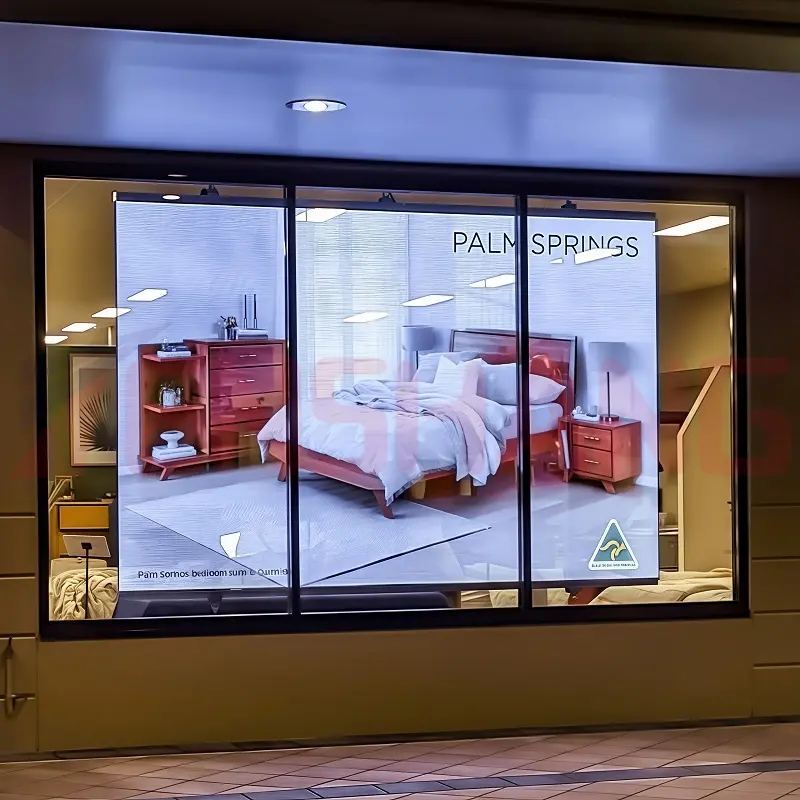

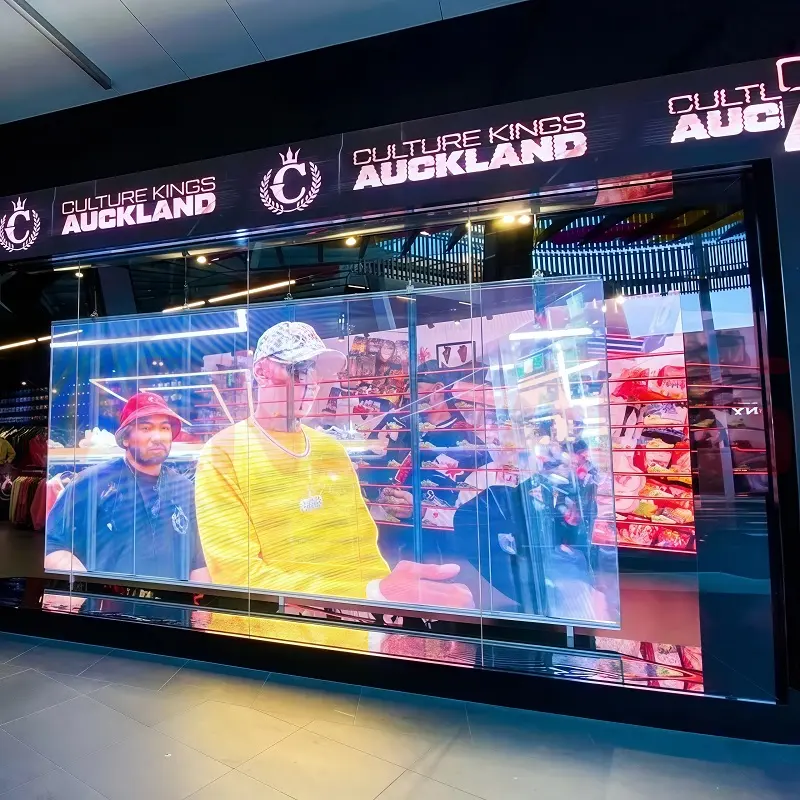

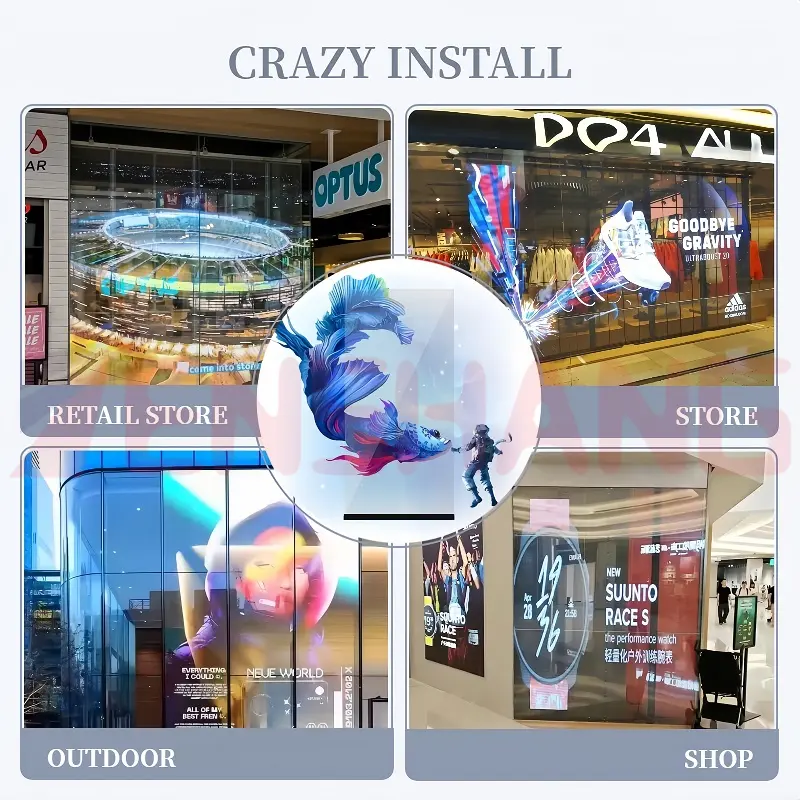

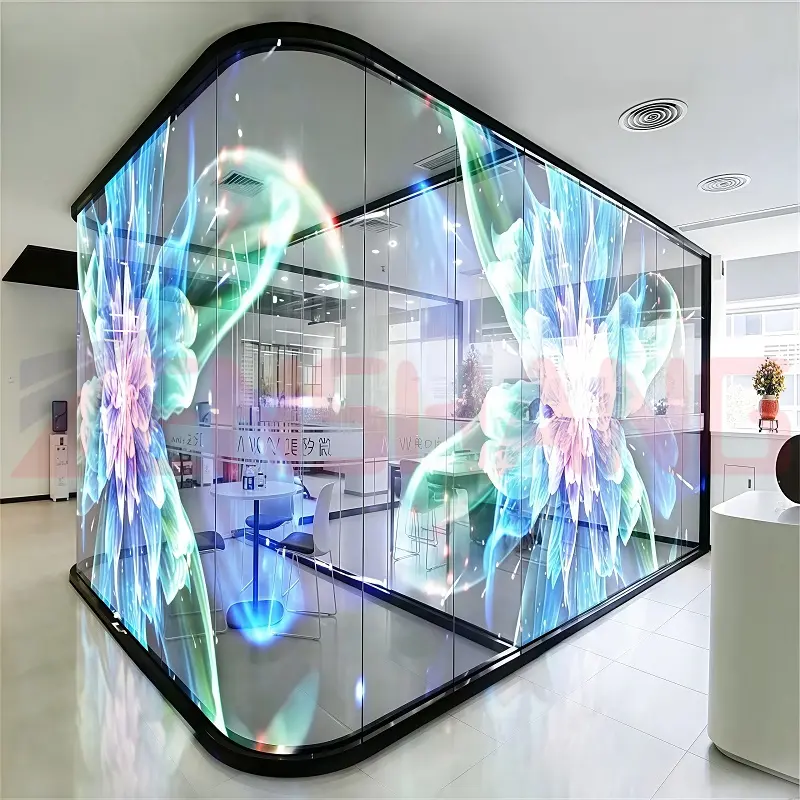

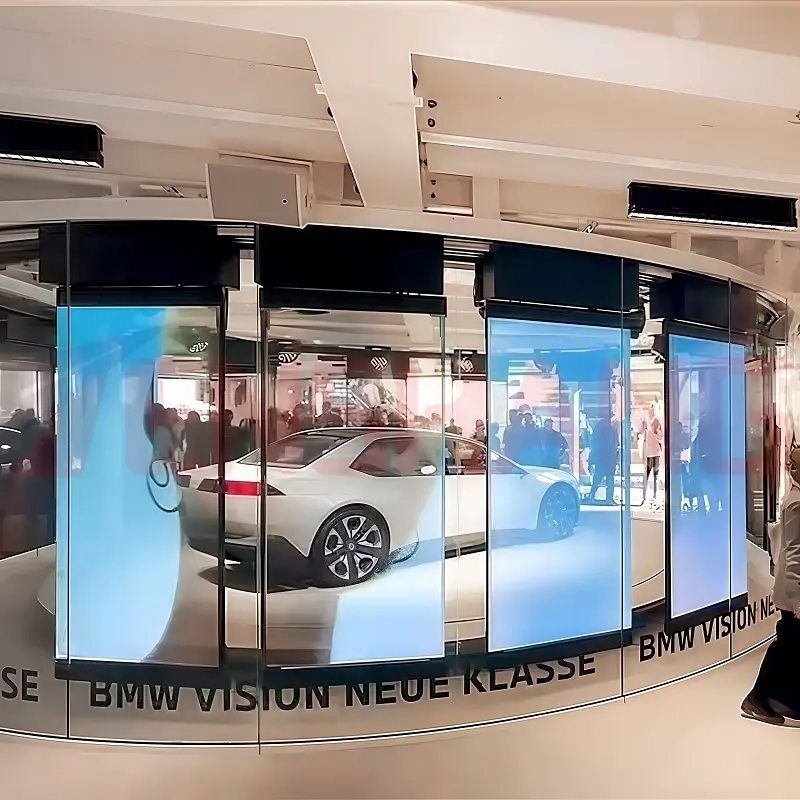

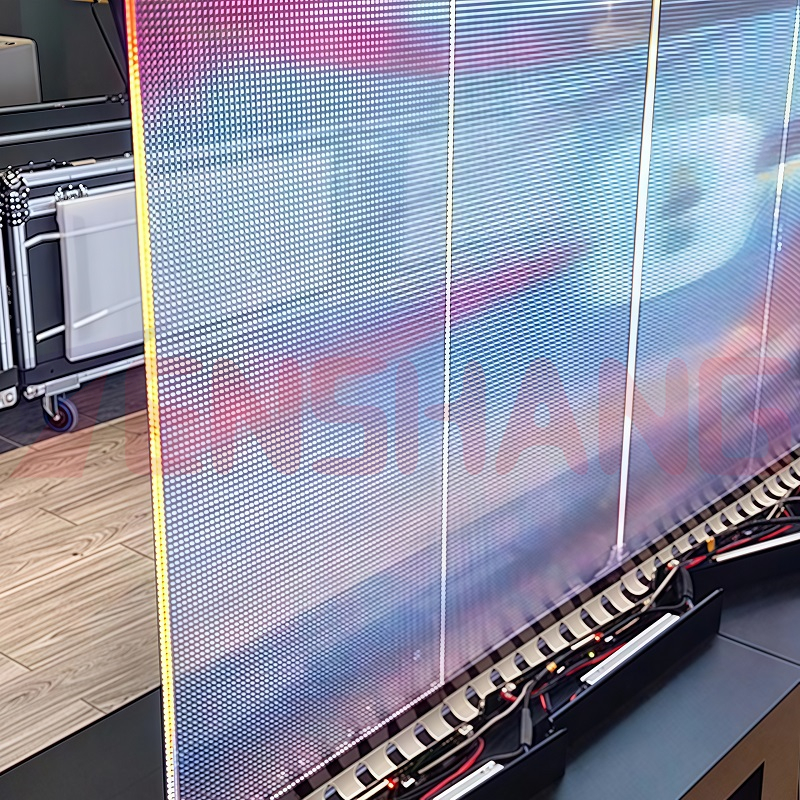

Project case of flexible led screen transparent
FAQs
-
Q1. Is the transparent flexible led screen bright enough? Can it be used outdoors?
The brightness of the conventional transparent screen is 1000-3000cd/㎡, which is fully applicable to indoor and semi-outdoor scenes; the brightness of the outdoor special model can reach 5000-8000cd/㎡, and it can cope with direct sunlight and ensure clear display. -
Q2. Will the flexible led transparent film screen fall off when it is installed on glass? How to fix it?
-
Q3. Can curved glass or curved walls be installed?
-
Q4. What is the display viewing angle of the holographic film LED screen?
-
Q5. Is led flexible transparent film display easy to break? How long does it last?
-
Q6. Can I customize the size and shape?
-
Q7. Does it consume a lot of power?
