Flag Led Magic Carpet Display Screen Battery Powered
What is Flag MAs a groundbreaking innovation in display technology, the LED Magic
Transparent soft fabric led advertising display screen revolutionizes portability and storage with its lightweight, foldable design. It seamlessly adapts to diverse scenarios—from intimate private settings to large-scale public events—offering unmatched versatility. Its reusability makes it an ideal choice for marriage proposals, weddings, entertainment venues, and stage performances, reducing long-term costs while consistently delivering high-quality visuals.
Most notably, it features highly customizable content playback: users can easily upload and configure videos, images, animations, and other materials to align with event themes and needs. This personalized approach not only deepens audience immersion but also infuses each occasion with unique style and creativity. By completely reimagining traditional visual presentation, it unlocks endless possibilities for scene expression.
Our LED magic carpet display boasts multiple core advantages, which are specifically reflected in the following aspects:
1. Convenient Remote Control
The dedicated APP allows for easy control of a single device. It not only supports linked playback of multiple contents and independent display on multiple screens but also enables flexible cascading into a complete large screen, meeting the control needs of different scenarios.
2. Excellent Visual Performance
The screen supports 16-bit color depth, delivering delicate and transparent image quality with excellent brightness performance. It can accurately capture and present rich color details, bringing a visually immersive experience with full layers.
3. Diverse Content Presentation
When controlling multiple magic carpet displays, they can either play the same content synchronously to create a unified visual atmosphere or display different contents independently to achieve personalized information transmission, flexibly adapting to various display needs.
4. Patented Fixing Technology
Large computer-controlled sewing equipment is used for high-precision fixing of LED light strip channels, ensuring that the light strips are aligned evenly and installed stably. This guarantees the consistency and stability of the display effect in terms of details.
This Led Magic Carpet Screen is the latest achievement of TENSHANG after a year of research and development, featuring both lightweight portability and flexible bendability. It is made of transparent polyester fiber with a light transmittance of up to 80%, which can present a transparent texture while ensuring the display effect.
In terms of resolution, it offers multiple options including P6.25, P10, P15, P20, and P30, which can be flexibly matched according to scene requirements. The power supply methods are convenient and diverse: it supports battery power supply and can also be used by connecting a power bank through a USB interface, easily getting rid of the bondage of power cords.
In terms of size, two standard specifications are available: 960×1440×7mm and 1200×1700×7mm, and it also supports customization on demand to meet the installation needs of different spaces. In addition, it is equipped with a variety of video upload methods such as 433 wireless, APP, USB, TF card, PC direct connection, WIFI + 4G Onbon, etc., ensuring flexible and efficient operation. What's more, it can realize seamless splicing and cascading, and can be easily combined into a large-size display, which is suitable for various scenarios such as stage performances, commercial exhibitions, and event arrangements.
Parameter of magic carpet led screen
| TS0008-GQ | P6.25 | P10 | P15 | P20 | P30 |
| Pixel Pitch | 6.25mm | 10mm | 15mm | 20mm | 30mm |
| Size | 960*1440*7mm / 1200*1700*7mm / customized size | ||||
| Material | Polyester fiber (customized optional) | ||||
| Humidity | Relative humidity ≤60% | ||||
| Brightness | 2500cd/㎡ | 2000cd/㎡ | 1800cd/㎡ | 1000cd/㎡ | 500cd/㎡ |
| Color | RGB Full Color | ||||
| Light Transmittance | 0.8 | ||||
| Grayscale | 16bits | ||||
| Output Voltage | DC 5V (DC 12V optional) | ||||
| Video Grids | MP4 / RMVB / MKV / AVI | ||||
| Power Supply Mode | Battery (power supply/movable power supply optional) | ||||
| Control System | 433 Control / APP / USB / TF / PC / WIFI+4G Onbon | ||||
| Working Temperature | 0~50°C | ||||
| Storage Temperature | 5°C~30°C | ||||
| Use Environment | Indoor (outdoor optional) | ||||
| Packing | 38.5*28*9cm 1.9Kg / 46*35*11cm 4Kg | ||||
| Featured Function | Seamless splicing cascade | ||||
Flag led screen video

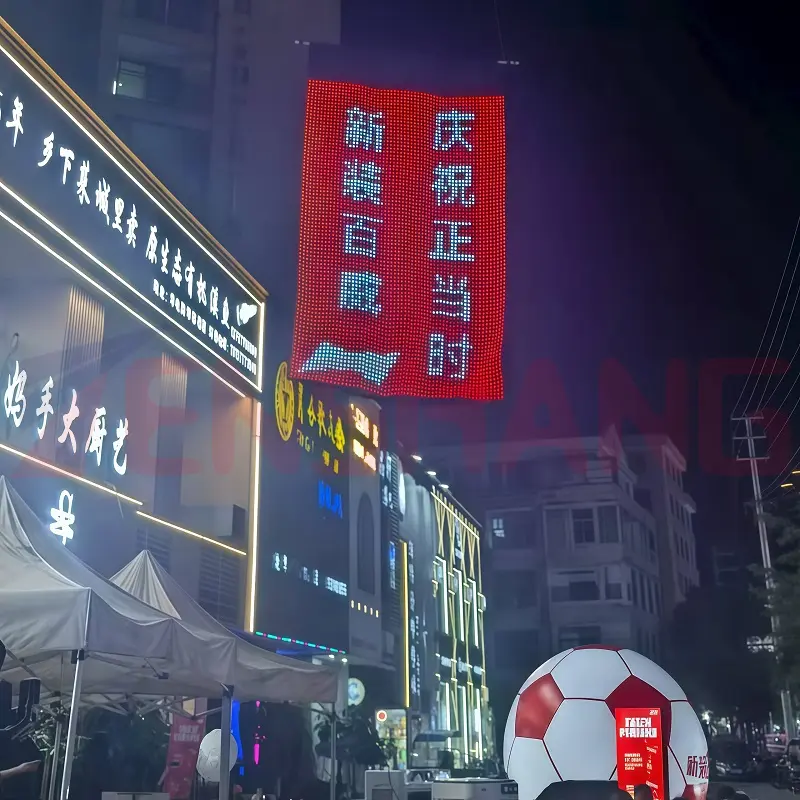

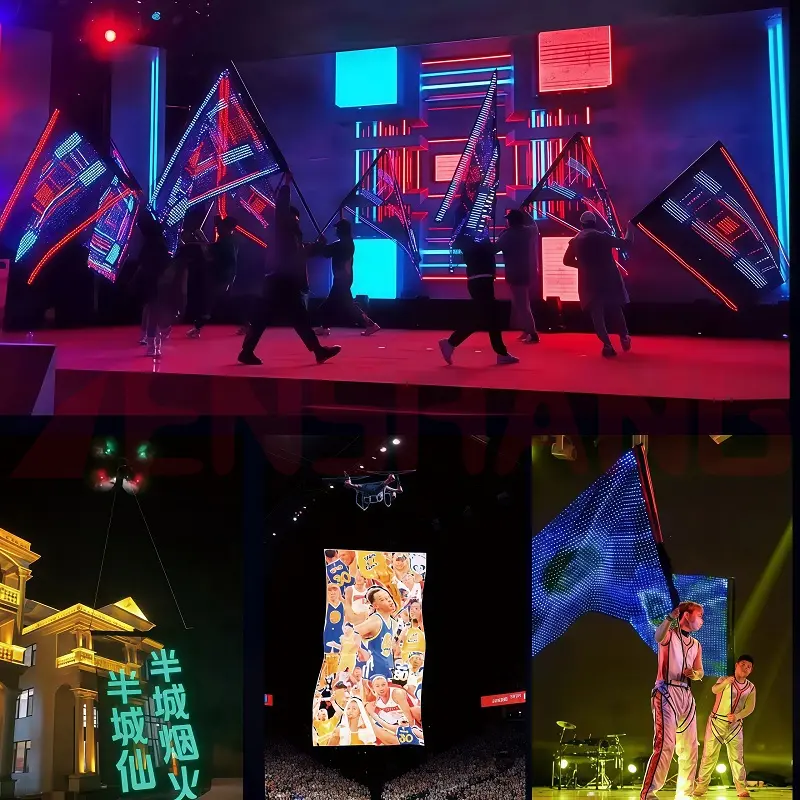

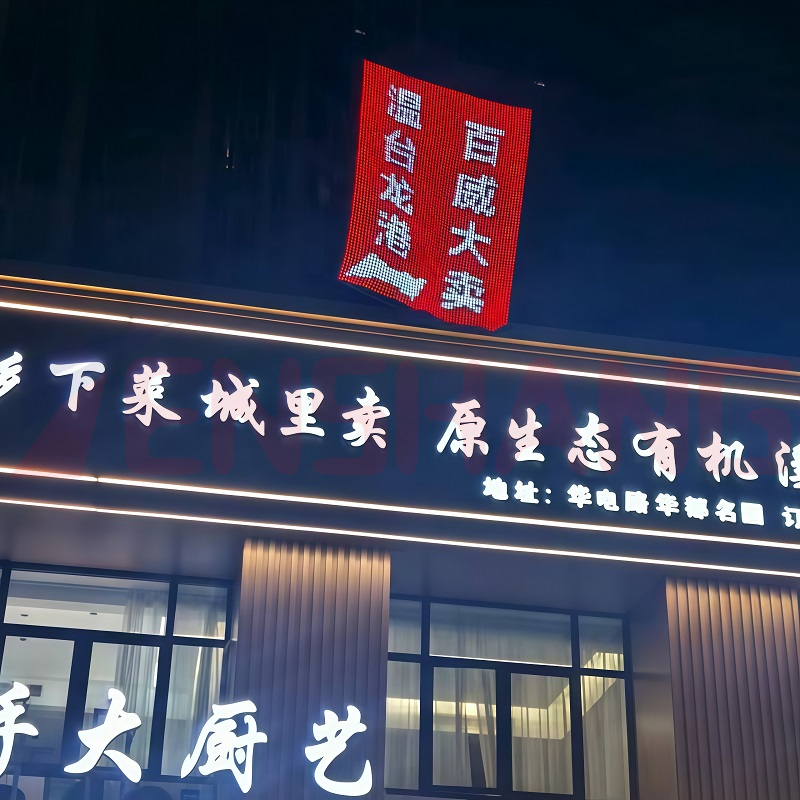

Project Cases of led magic carpet flag screen
FAQs
-
Q1. Can this Led display carpet be used together?
-
Q2. What is the output voltage of this carpet led display?
-
Q3. What formats of videos are supported?
-
Q4. Is this magic led carpet display only available indoors?
-
Q5. What if I need other sizes?
-
Q6. What is the light transmittance of the material?
-
Q7. In what ways can I upload videos?
