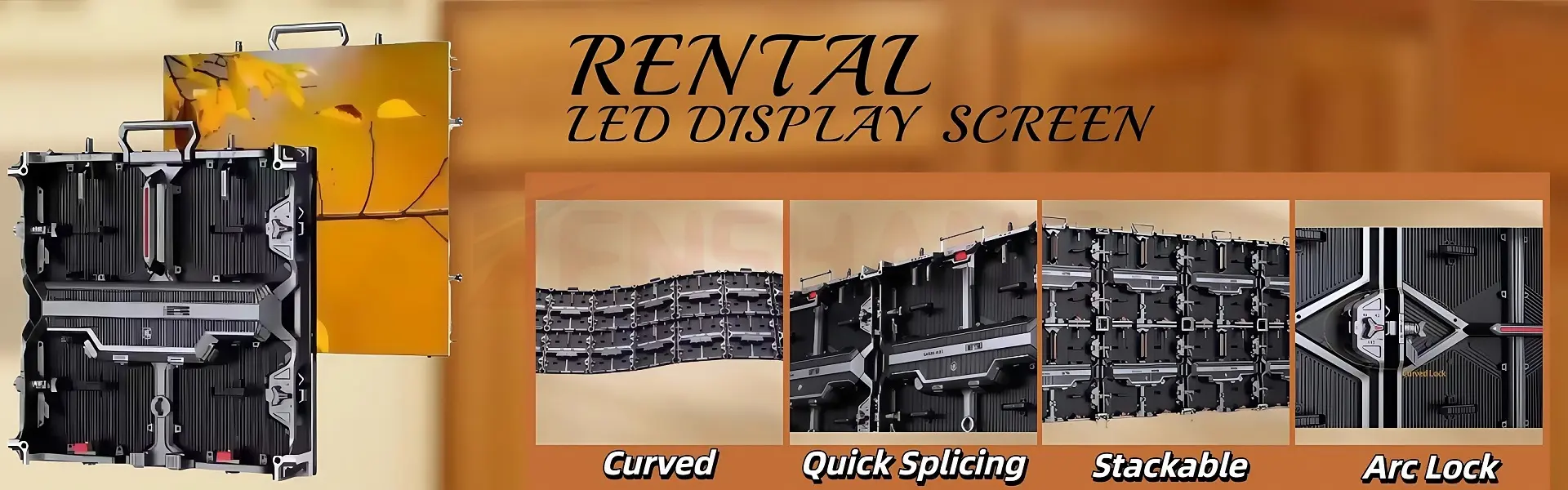

Curved Rental Led Screen Flexible Pantalla
What is the difference between led video wall rental and other displays?

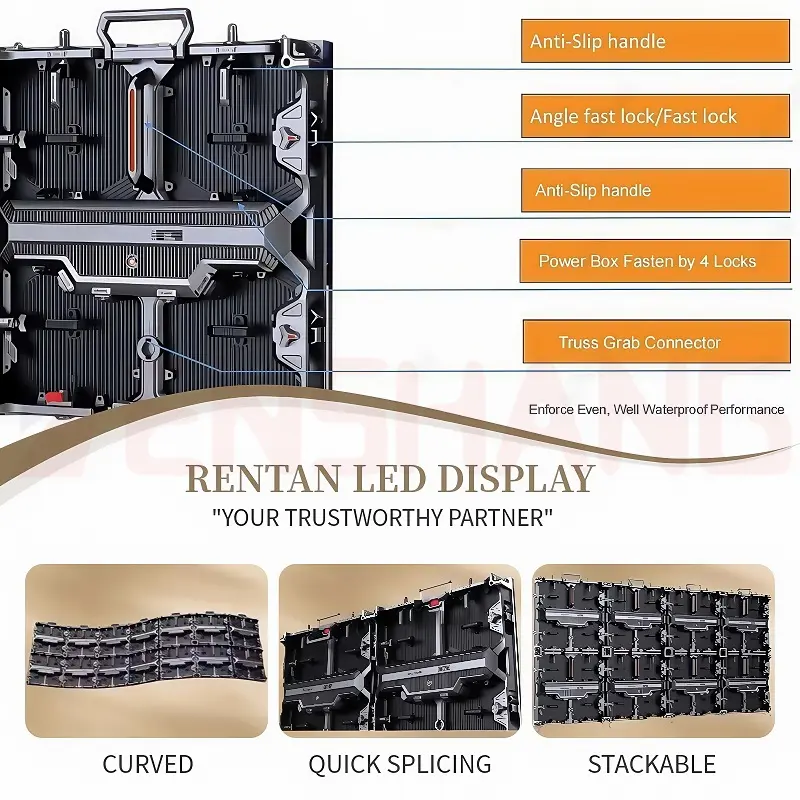

The core objectives of LED rental displays are portability, quick installation, and versatility. Designed specifically for temporary events, they need to be frequently disassembled, transported, and set up. Therefore, they adopt a modular design in structure, featuring light weight and thin thickness. They support flexible splicing into any size and plug-and-play functionality. Seamless splicing is achieved through quick locks and signal cascading (such as HDMI and network cables). Their size can be adjusted according to the venue (ranging from a few square meters to thousands of square meters), and they can even be bent into irregular shapes like arcs and circles to adapt to different stage designs.

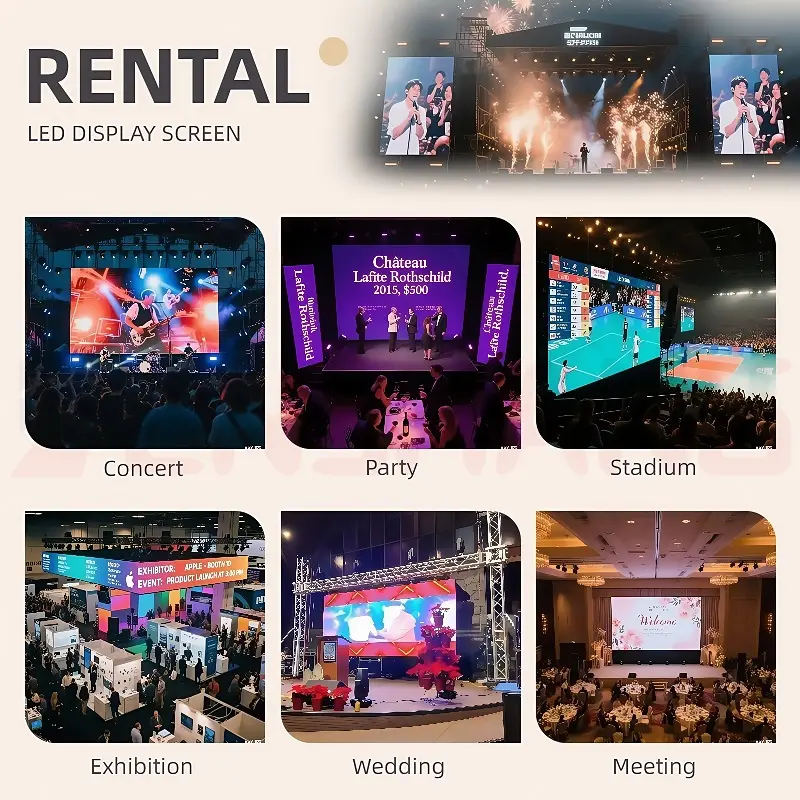

Cultural performances and entertainment activities are the most core application areas of LED rental displays, with special emphasis on visual effects and live atmosphere creation, such as concerts/music festivals, awards ceremony/game parties, drama/drama stage, etc.
Commercial exhibitions and marketing activities focus on brand display and information transmission, and need to quickly adapt to different venues, such as exhibitions/expositions, new product launches, commercial roadshows/flash events, etc.
Sports events and competitive activities need to present dynamic content in real time and adapt to different outdoor/indoor environments, such as sports events, e-sports competitions, etc.
Celebrations and social events such as weddings/banquets, corporate annual meetings/team building, festival celebrations/city events, etc.
Conferences and forum events such as large summits/forums, industry seminars/training, government/enterprise temporary meetings, etc.
Temporary outdoor scenes, such as outdoor markets/carnivals, charity publicity activities, temporary press conferences, etc.

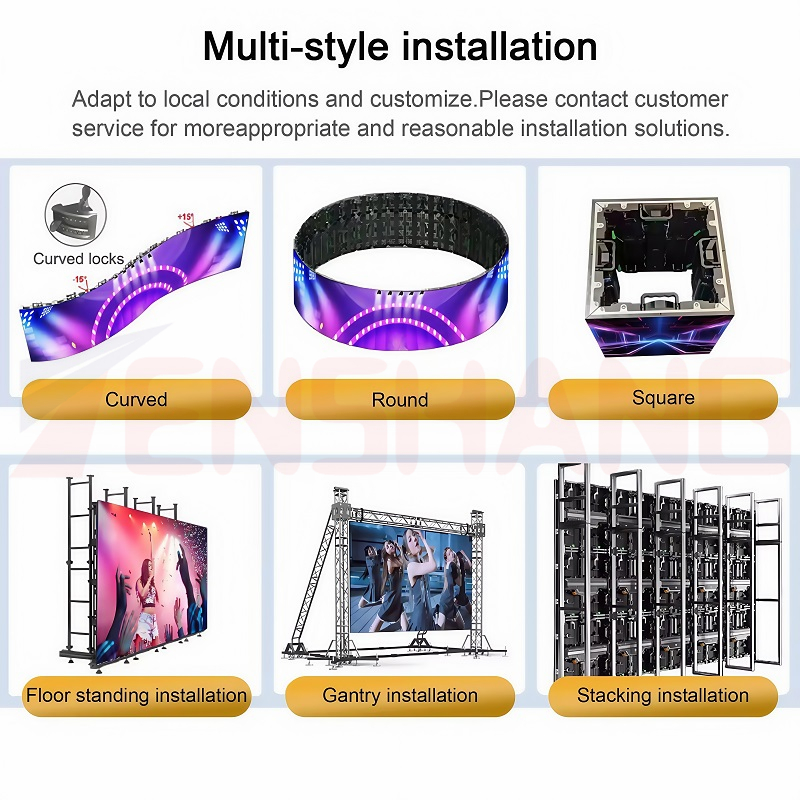

1. Bracket/truss installation, through pre-built support structure, provides a stable load-bearing foundation for video wall rental LED displays, and is mostly used in scenarios where overhead, positioning or dispersing loads are required.
2. Stack and install, stack and place it layer by layer, and use its own gravity, contact surface friction or simple connections (such as snaps and latches) to achieve fixation, focusing on "space utilization" and "easy to operate".
3. Lifting, directly use crossbeams or other tools to lift the led display rental.
4. Fixed installation, through mechanical connection or structural constraints, the rental display led is permanently or semi-permanently fixed to the foundation (ground, wall, equipment body) to prevent displacement or shaking, which is one of the most basic installation methods.

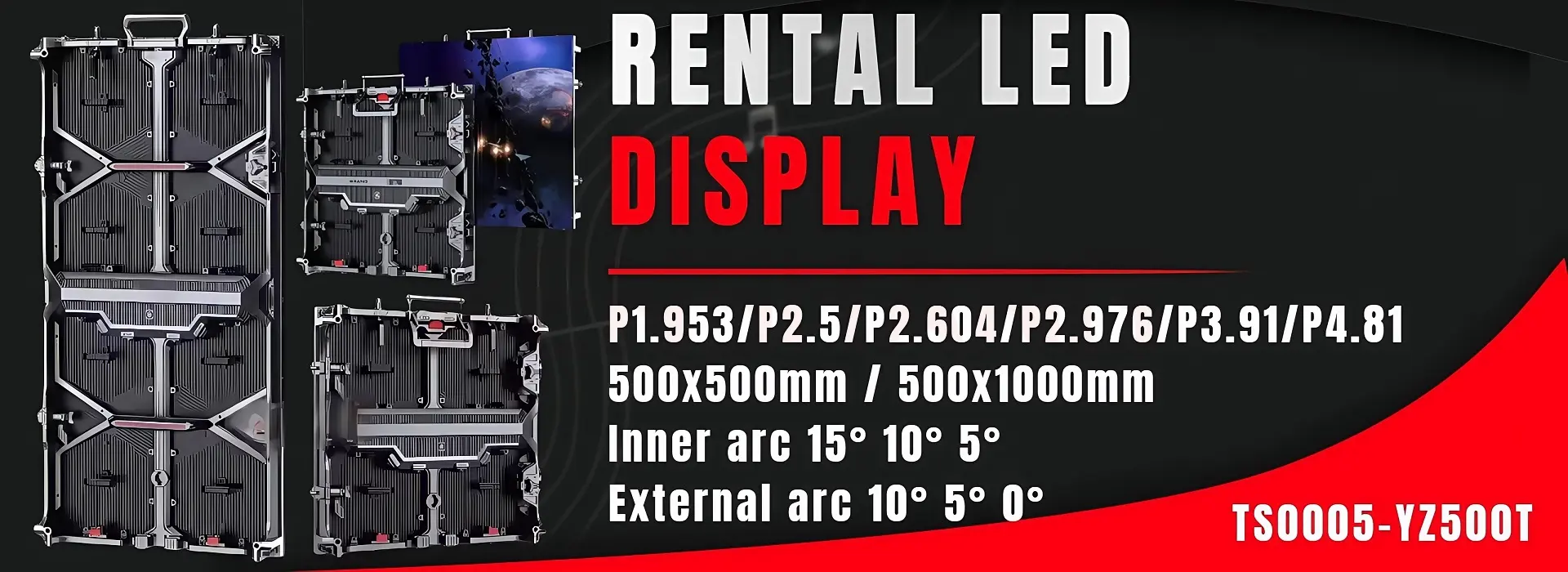

Parameter of TENSHANG’s rental led video wall
| TS0005-YZ500T | P2.604 | P2.976 | P3.91 | P4.81 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Density | 147,928 dots/㎡ | 112,910 dots/㎡ | 65,536dots/㎡ | 43,222dots/㎡ |

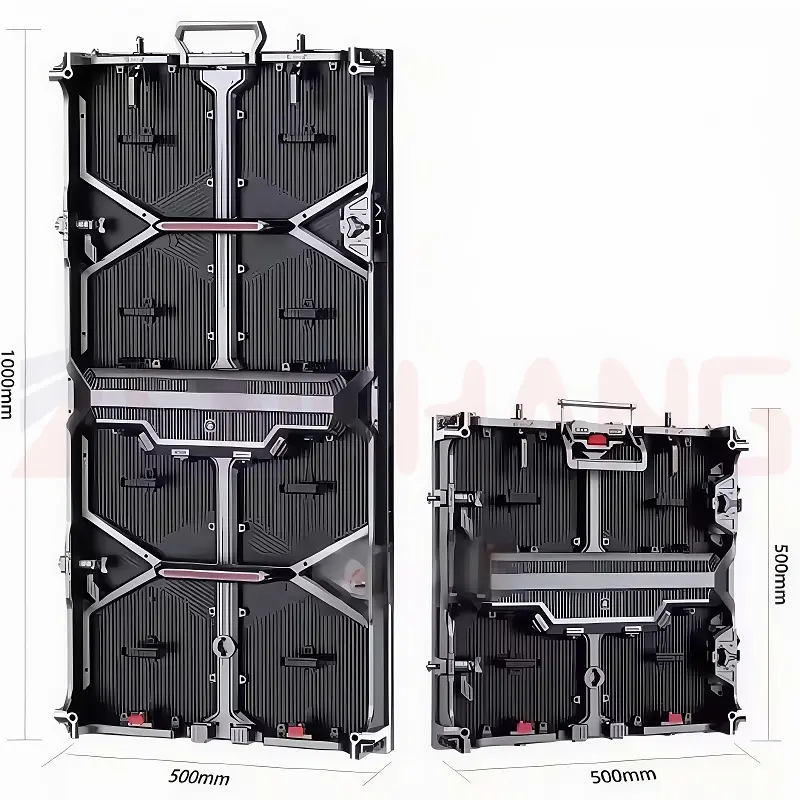

| Panel Size | 500x500mm 500x1000mm | 500x500mm 500x1000mm | 500x500mm 500x1000mm | 500x500mm 500x1000mm |
| Panel Resolution | 192x192dots 192x384dots | 192x192dots 192x384dots | 192x192dots 192x384dots | 192x192dots 192x384dots |
| Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Refresh Rate | 3840Hz/7680Hz | 3840Hz/7680Hz | 3840Hz/7680Hz | 3840Hz/7680Hz |
| Brightness | 900 nits / 4500 nits | 900 nits / 4500 nits | 900 nits / 5000nits | 900 nits / 5000nits |
| Input Voltage | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz |
| Max Power Consumption | 800W | 800W | 800W | 800W |
| Average Power Consumption | 300W | 300W | 300W | 300W |
| Application | Indoor / Outdoor | Indoor / Outdoor | Indoor / Outdoor | Indoor / Outdoor |
| Flexible Arc | Inner arc 15° 10° 5° External arc 10° 5° 0° | Inner arc 15° 10° 5° External arc 10° 5° 0° | Inner arc 15° 10° 5° External arc 10° 5° 0° | Inner arc 15° 10° 5° External arc 10° 5° 0° |
| Weight | 6.5KG / 11KG | 6.5KG / 11KG | 6.5KG / 11KG | 6.5KG / 11KG |
| Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Certificates | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC |
| Optional Resolution | P1.953 / P2.5 / P2.604 / P2.976 / P3.91 / P4.81 | |||
Video
FAQs
-
Q1. How to choose between 500mm and 1000mm?
The 500mm system is small, easier to assemble, and the price per square meter is also more expensive. You can choose according to your own needs, and we can also recommend it to you. -
Q2. How do I install this LED rental display into a curved one?
-
Q3. What is the maximum size for installing when using lifting?
-
Q4. Do you need other installation accessories when using stacking installation?
-
Q5. Are there free LED module accessories?
-
Q6. What are the differences between indoor and outdoor rental LED displays?
-
Q7. What is your after-sales treatment plan?
