Battery Powered Led Poster Screen Foldable Rechargeable Seamless Splicing
What are the advantages of foldable LED poster screens with battery?
Energy storage LED electronic poster screen, also known as LED energy storage mobile smart splicing poster screen, LED mobile advertising machine, etc. It is free of wiring, plug-in, and installation-free, ready to use, supports multiple splicing, and the content can be published with one click through the mobile phone. It also has a foldable design to facilitate transportation and storage, and has the characteristics of ultra-long battery life. It is often used in commercial scene display advertising and other content. The energy storage LED poster screen breaks through the limitations of traditional LED poster screens in flexibility, adaptability, cost control and function expansion through the technology integration of "energy storage + display", and is especially suitable for users who need mobile deployment, deal with power outage scenarios or pursue green energy saving. With the advancement of new energy technology and display technology, its application scenarios will continue to extend and become an important innovation carrier in the fields of outdoor advertising and information dissemination.
Use a removable and rechargeable battery. It can be used continuously for 8 hours of charging for 10 hours.After being free from the power cord, our led electronic poster screen can be moved to crowded areas (such as exhibition entrances and shopping mall atriums) at will to avoid the location restriction caused by fixed wiring of traditional LED screens, which is especially suitable for scenarios where "dynamic chases" is required (such as following promotional activities in the mall).

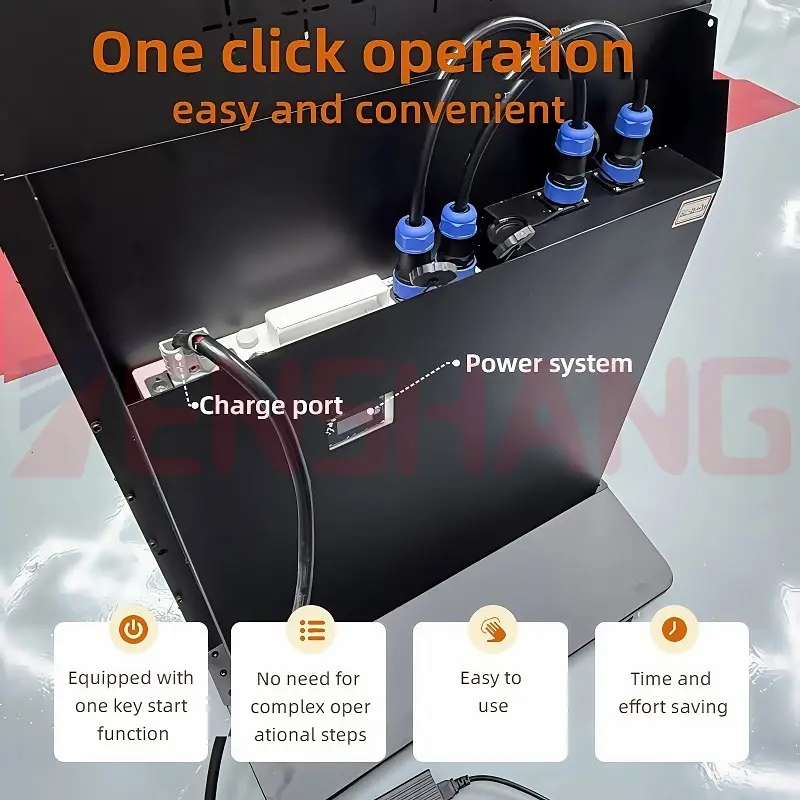

1. One-click switch button:Our built-in battery fold led poster display comes with one-click switch button, one-click start and close.
2.Removable battery:The power module supports rapid disassembly and replacement, and can achieve "seamless battery life" through a backup battery pack.
3.Intelligent power management:Built-in power management system (BMS), visualizing energy consumption, displaying residual power, charging progress and equipment power consumption in real time, supporting low power warning and charging and discharging protection.
4.Triple power supply mode, full scene coverageThe flexibility and scene adaptability of power supply design are achieved, three power supply modes, energy storage mode, plug-in direct supply mode, and hybrid power supply mode to achieve full-scene coverage.
Parameter of Recharge LED display poster
| TS0003-BJ64192B |
P1.25 |
P1.53 |
P1.86 |
P2 |
P2.5 |
| Pixel Pitch |
1.53mm |
1.53mm |
1.86mm |
1.86mm |
2.5mm |
| Density |
640,000 dots/㎡ |
427,182 dots/㎡ |
289,050 dots/㎡ |
250,000 dots/㎡ |
160,000 dots/㎡ |
| Screen Size |
640 x 1920mm |
640 x 1920mm |
640 x 1920mm |
640 x 1920mm |
640 x 1920mm |
| Resolution |
512 x 1536 dots |
416 x 1248 dots |
344 x 1032 dots |
320 x 960 dots |
256 x 768 dots |
| Material |
Iron Sheet Metal |
Iron Sheet Metal |
Iron Sheet Metal |
Iron Sheet Metal |
Iron Sheet Metal |
| Drive Method |
1/43 Scan |
1/43 Scan |
1/43 Scan |
1/40 Scan |
1/32 Scan |
| Brightness |
900 nits |
900 nits |
900 nits |
900 nits |
900 nits |
| Input Voltage |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
| Max Power Consumption |
800W |
650W |
500W |
900W |
450W |
| Average Power Consumption |
270W |
220W |
165W |
400W |
150W |
| Control Way |
3G/4G/WIFI/USB/LAN |
3G/4G/WIFI/USB/LAN |
3G/4G/WIFI/USB/LAN |
3G/4G/WIFI/USB/LAN |
3G/4G/WIFI/USB/LAN |
| Application |
Indoor |
Indoor |
Indoor |
Indoor |
Indoor |
| Weight |
57Kg |
57Kg |
57Kg |
57Kg |
57Kg |
| Featured Function |
Foldable / Built-in Battery / Seamless Splicing |
Foldable / Built-in Battery / Seamless Splicing |
Foldable / Built-in Battery / Seamless Splicing |
Foldable / Built-in Battery / Seamless Splicing |
Foldable / Built-in Battery / Seamless Splicing |
| Certificates |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
Battery powered digital LED poster’s demo video
Some questions about our LED foldable poster display
-
Q1. What resolutions are available?
-
Q2. Can I put the battery in the same time as I use it?
-
Q3. Does this support seamless cascade?
-
Q4. How do I know when I need to charge?
-
Q5. What software can I use to replace media ads?
-
Q6. How is the warranty period achieved?
-
Q7. What are the trade methods?
